Black Steel Y Post ( Star Pickets ) for Australian and New Zealand Security Fencing Uses

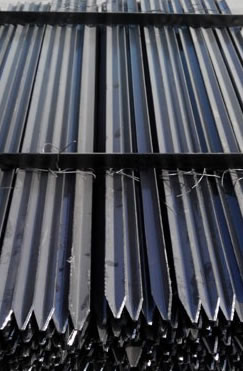

Y fence posts are metal star pickets popularly used in Australian and New Zealand market, also known as Australia Fence Post. Dongfang sells large quantities of Y Posts ( Star Pickets ) to Australia. Most popular types are Black Steel Bitumen Coated Star Pickets of 165cm and 180cm in length, 7 hole punched for fixing metal mesh panels with screws or fasteners. For 165cm Black steel Y posts, 7600 post can be loaded per container for shipment.

Y Posts Varieties:
- Black Bitumen coated steel tubular or bar fence post
- Bright Hot-dip galv. star picket post or electro galvanized, or black bitumen coated
- Black, Green and other colors PVC-coated steel post
- Black steel Y Posts (Star Pickets) to Australia & New Zealand, packed in 1 X 20ft container, 165 cm Y Post Pickets of 1.90g/sm (approx 7,200 Star Pickets per container loading)

Post Length:0.45M,0.6M,0.9M,1.35M,1.5M,1.65M,1.8M,2.1M,2.4M,3.0M
Usual weight: 1.25kg/m,1.38kg/m,1.58kg/m,1.86kg/m,1.9kg/m,2.04kg/m
Material: Q235 carbon steel
Surface treatment: non-painted black steel, black Bitumen painted, HDG, electric galvanized.

Application:
Y fence posts are used for support and installation of protective wire mesh fencing system for express highway and express railway; security fencing of beach farming, fish farming and salt farm; and garden fences.

Black Steel Y Posts for Garden Fences Stabilizing  PVC Coated Steel Y Posts for Australian and New Zealand Market Fencing Uses

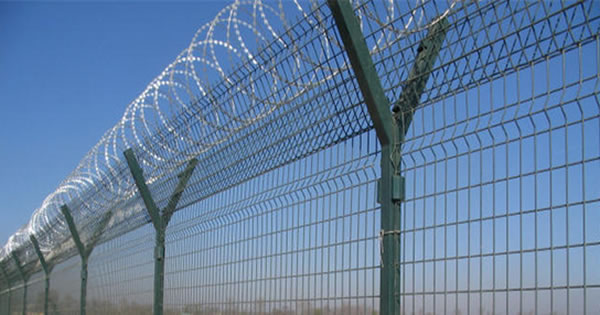

High Security Fence Supportted with Y Post and Concertina Razor Wire Coils

Panel Specification:

Panel  Mesh  Wire Thickness Surface Treatment Panel Width Folds NOS. Panel
Height
Fence Height
Big Panel 50x100mm
55x100mm
4.00mm
4.50mm
5.00mm
Galvanized and
Electrostatic polyester coated or PVC coated
2.50m
3.00m
4 2000mm 2700mm
5 2300mm 3200mm
6 2600mm 3700mm
2 530mm 2700mm
V panel 630mm 3200mm
730mm 3700mm

Fence Post specifications:
Finish: Galvanized and Electrostatic polyester powder coated.
Profile: 60*60*2mm/2.5 thic.
Length: 2700mm I+530mm V; 3100mm I+630mm V;   3600mm I+730mm V;
Base Plate: available on request.
Rainhat: plastic or metal.

Y Star Picket Posts, Hot Dipped Galvanized
Material: Common steel of Q235
Surface: Hot dip galvanized.
Packing: 10pcs/bundle, 400pcs/pallet.

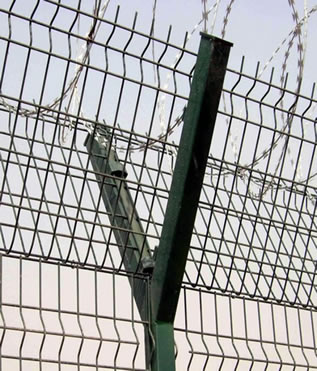

Y Post for Australian and New Zealand Market

Length 0.45M 0.60M 0.90M 1.35M 1.50M 1.65M 1.80M 2.10M 2.40M
Holes (Australia) 2 3 5 11 14 14 14 7 7
Holes (New Zealand)       7 7 7 8

Measurement Y Post Star Picket Length
0.45M 0.60M 0.90M 1.35M 1.50M 1.65M 1.80M 2.10M 2.40M 2.70M 3.00M
SPEC PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT PCS/MT
2.04kg/M 1089 816 544 363 326 297 272 233 204 181 163
1.90kg/M 1169 877 584 389 350 319 292 250 219 195 175
1.86kg/M 1194 896 597 398 358 325 298 256 224 199 179
1.58kg/M 1406 1054 703 468 422 383 351 301 263 234 211

Dongfang also supply Galvanized and Powder Coated Steel Picket Fences:

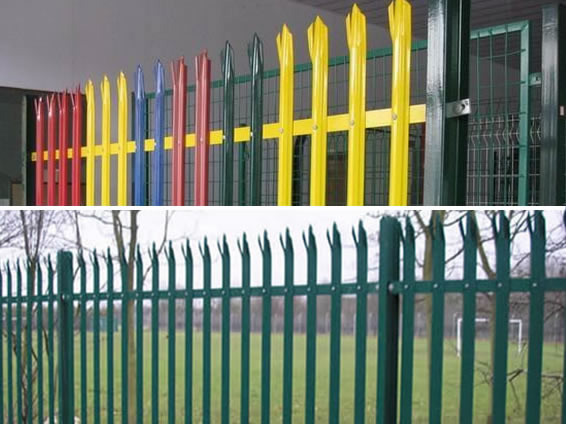

Powder Coated Steel Picket Fence

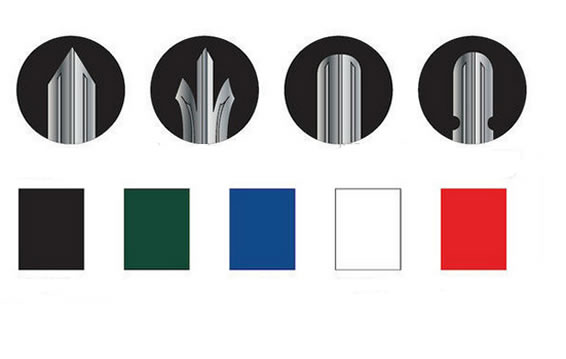

Top Profiles

Specifications Available
2,04kg/1.58kg PER METER STANDARD

Length(cm) 45 60 90 135 150 165 180 210 240
Perforated Holes 2 3 5 11 14 14 14 7 7
          7 7 8

Made of plain carbon steel, weather proofed and coated to prevent premature rusting.
